Polacel CMDIF Series

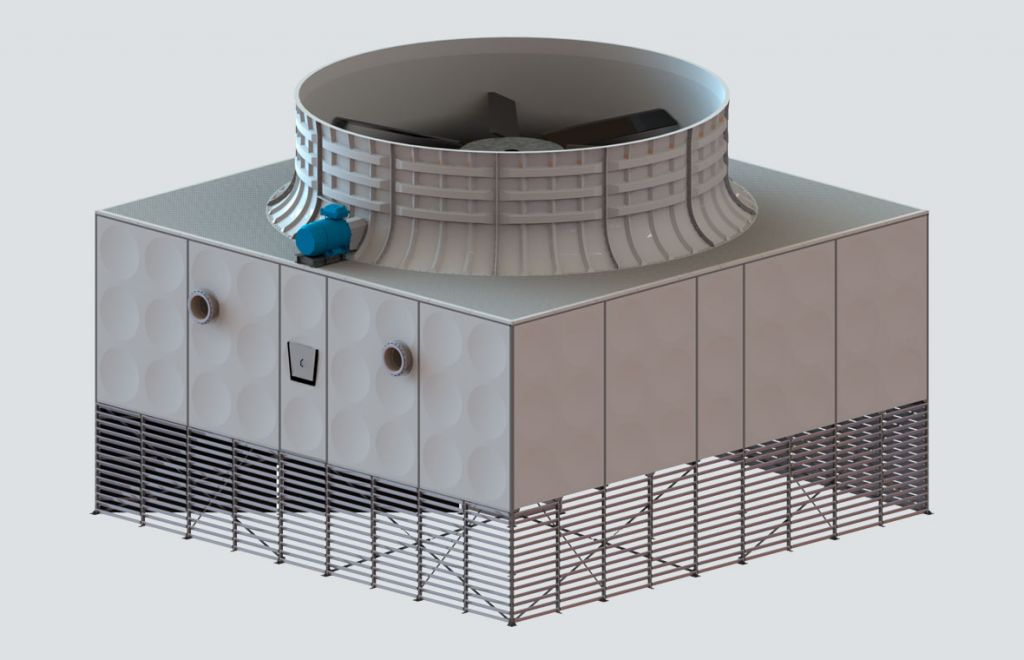

Polacel CMDIF Cooling towers with FRP frame are designed to cool low to medium water flows. The modular range Polacel CMDIF can meet easily most cooling needs and to all constraints in terms of space, whether for a new project or for an adaptation to an existing basin when replacing an existing tower. Polacel CMDIF cooling towers can be installed independently, one beside the other (in-line configuration) or in a back to back configuration. The thermal performance of these cooling towers is optimal and operation is effective. Because they can recycle about 95% of the cooled water, the Polacel CMDIF cooling towers represent the best solution for the preservation of the environment.
Selecting a cooling tower
The water temperatures (hot water in and cold water out), the wet bulb temperature of the site of installation, the required water flow and the noise level are the 4 major factors in order to select a wet cooling tower. After analyzing your needs, we will propose the most appropriate technical and economic solution.There are Polacel CMDIF standard solutions for every need starting from a water flow to cool of 500 m3/h. Our engineers can also make special adaptations of the standard cooling towers in order to meet the most specific of your needs.The various type of available heat exchange surfaces allows us to select a suitable fill whether of the "film" type or of the "splash" type . The heat exchange fill is chosen according to the quality of water to be cooled (clean or highly polluted water), but also depending on the specific environment of the site and considering to the process to be cooled. In all cases, a chemical treatment of the cooling water is required.
The water temperatures (hot water in and cold water out), the wet bulb temperature of the site of installation, the required water flow and the noise level are the 4 major factors in order to select a wet cooling tower. After analyzing your needs, we will propose the most appropriate technical and economic solution.There are Polacel CMDIF standard solutions for every need starting from a water flow to cool of 500 m3/h. Our engineers can also make special adaptations of the standard cooling towers in order to meet the most specific of your needs.The various type of available heat exchange surfaces allows us to select a suitable fill whether of the "film" type or of the "splash" type . The heat exchange fill is chosen according to the quality of water to be cooled (clean or highly polluted water), but also depending on the specific environment of the site and considering to the process to be cooled. In all cases, a chemical treatment of the cooling water is required.
ADDITIONAL INFO
The modular cooling tower system can be expanded and customized, and there are standard solutions available for various capacity requirements. This system is standardized to a great degree and has been adapted to a great number of customer wishes. Around 80 % is available as standard solutions, with the remaining 20 % implemented as customized engineering. The factory-preassembled modules are employed primarily for smaller projects, for which the customer enjoys significant cost advantages. The larger the project, on the other hand, the more effective are field-erected cooling towers. Our engineers make customized modifications to meet your special requirements.
