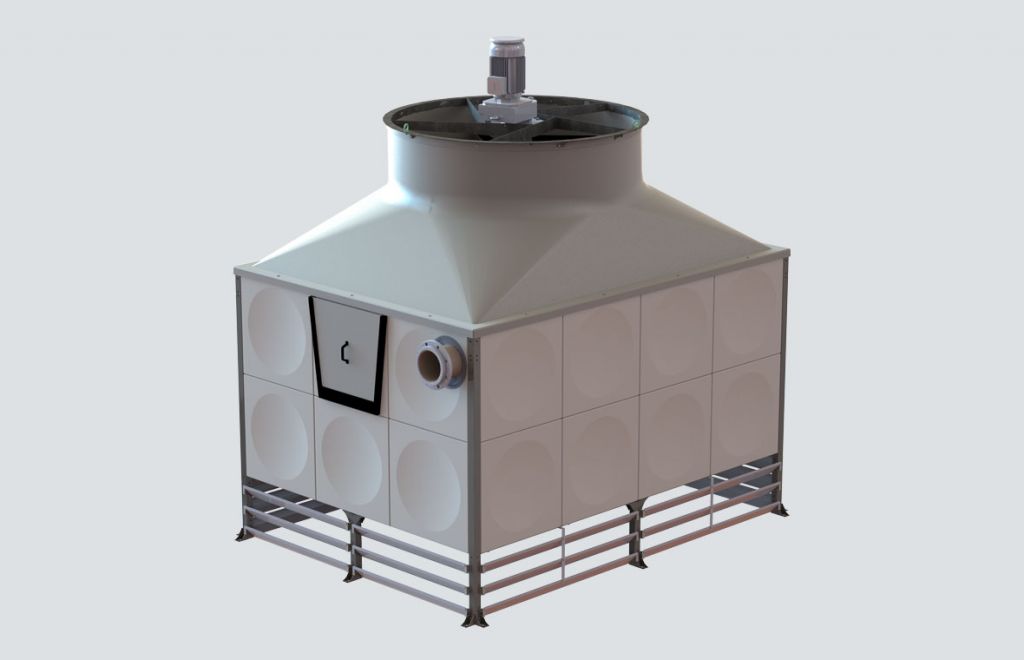

This range of cooling tower cells is designed to cool small water flows. There are 7 different sizes that cover water flows from 5 to 150 m3 per hour. The towers are completely prefabricated and shop tested. The thermal performance of these cooling towers is optimized with regard to the use of water and power consumption. Noise production of the standard tower is low due to the configuration with an axial ventilator. In case of severe noise requirements several extensions are possible. The equipment is full corrosion resistant and provides a long lasting reliable solution for generation of cold water.

Selecting a cooling tower

The water temperatures (hot water in and cold water out), the wet bulb temperature of the site of installation, the required water flow and the noise level are the 4 major factors in order to select a wet cooling tower. After analyzing your needs, we will propose the most appropriate technical and economic solution.There are Polacel CMC standard solutions for every need starting from a water flow to cool of 90 m3/h. Our engineers can also make special adaptations of the standard cooling towers in order to meet the most specific of your needs.The various type of available heat exchange surfaces allows us to select a suitable fill whether of the "film" type or of the "splash" type . The heat exchange fill is chosen according to the quality of water to be cooled (clean or highly polluted water), but also depending on the specific environment of the site and considering to the process to be cooled. In all cases, a chemical treatment of the cooling water is required.

Polacel CMC = thermal performance certified by CTI STD-201

The thermal performance of Polacel CMC cooling towers are certified according to the CTI STD-201 standard (Cooling Technology Institute). This certification is the assurance for our customers to have a cooling tower that cools the water at the required temperature. It eliminates costly in-situ performance tests. The Polacel CMC cooling towers are equipped with axial fans driven by geared motors. The geared motors being usually controlled by variable speed drives, the Polacel CMC cooling towers thus contribute to the reduction of operational costs (OPEX) of the tower and therefore of your entire installation.

ADDITIONAL INFO

The modular cooling tower system can be expanded and customized, and there are standard solutions available for various capacity requirements. This system is standardized to a great degree and has been adapted to a great number of customer wishes. Around 80 % is available as standard solutions, with the remaining 20 % implemented as customized engineering. The factory-preassembled modules are employed primarily for smaller projects, for which the customer enjoys significant cost advantages. The larger the project, on the other hand, the more effective are field-erected cooling towers. Our engineers make customized modifications to meet your special requirements.
