Shell & Tube Double Safety
Double tube safety heat exchangers play an important role in applications where preventing media mixing in the event of a leak is paramount. They are widely used and accepted as standard in the chemical industry, power, heavy and light industry, oil & gas, marine, transportation, refrigeration and food & beverage sectors. Our Manufacturer has a long track record in developing ground-breaking technologies always aiming to reach the highest levels of safety, environmental protection and cost-efficient operation.
Double Tubes - Function and Design

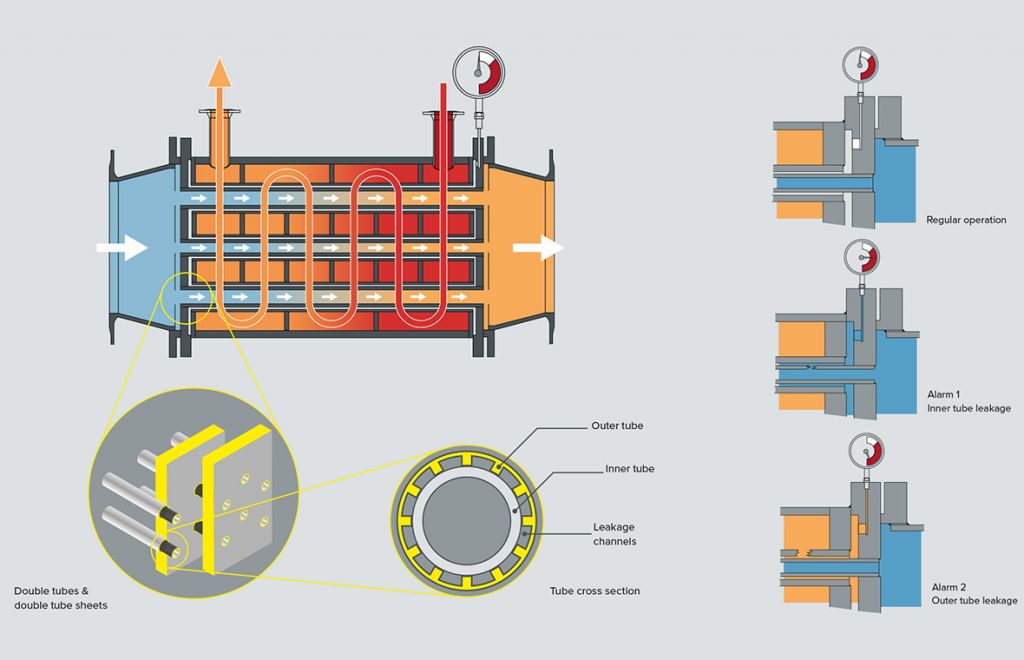

Unlike a standard shell & tube heat exchanger with a single wall design, the tubes in double tube safety models have two walls, consisting of an inner and outer tube. They also have two tube sheets at each end. If a tube wall is damaged, the product flows through leakage channels arranged between the double tubes into a leakage collection space and triggers an alarm in the leak detection device. Because the second tube wall remains undamaged, the media are kept separate. This means that the plant operator can continue to run the heat exchanger until the next maintenance, avoiding costly unplanned downtimes, as well as contamination of your process and its equipment.
Safety First with Double Tubes
Kelvion double tube safety heat exchangers are available in different materials or their combinations, depending on application and media. The inner tube is normally plain, while the outer tube has a carved fin profile on the inside. This ensures the contact between the two tubes for optimum heat transfer. It also generates channels between the tubes for leaking media, which are then registered by the leak detector. Depending on the application and different media properties, the outer surface of the outer tube can be executed in a plain or low-fin design.
Unlike a standard shell & tube heat exchanger with a single wall design, the tubes in double tube safety models have two walls, consisting of an inner and outer tube. They also have two tube sheets at each end. If a tube wall is damaged, the product flows through leakage channels arranged between the double tubes into a leakage collection space and triggers an alarm in the leak detection device. Because the second tube wall remains undamaged, the media are kept separate. This means that the plant operator can continue to run the heat exchanger until the next maintenance, avoiding costly unplanned downtimes, as well as contamination of your process and its equipment.
Safety First with Double Tubes
Kelvion double tube safety heat exchangers are available in different materials or their combinations, depending on application and media. The inner tube is normally plain, while the outer tube has a carved fin profile on the inside. This ensures the contact between the two tubes for optimum heat transfer. It also generates channels between the tubes for leaking media, which are then registered by the leak detector. Depending on the application and different media properties, the outer surface of the outer tube can be executed in a plain or low-fin design.
ADDITIONAL INFO
Our expert engineers are fully trained to provide you with the best-in-class solutions tailored to your specific requirements. As industries face ever stricter regulations for safeguarding requirements of environment and water supply, double tube safety heat exchangers are the technology of choice.
