Box Cooler

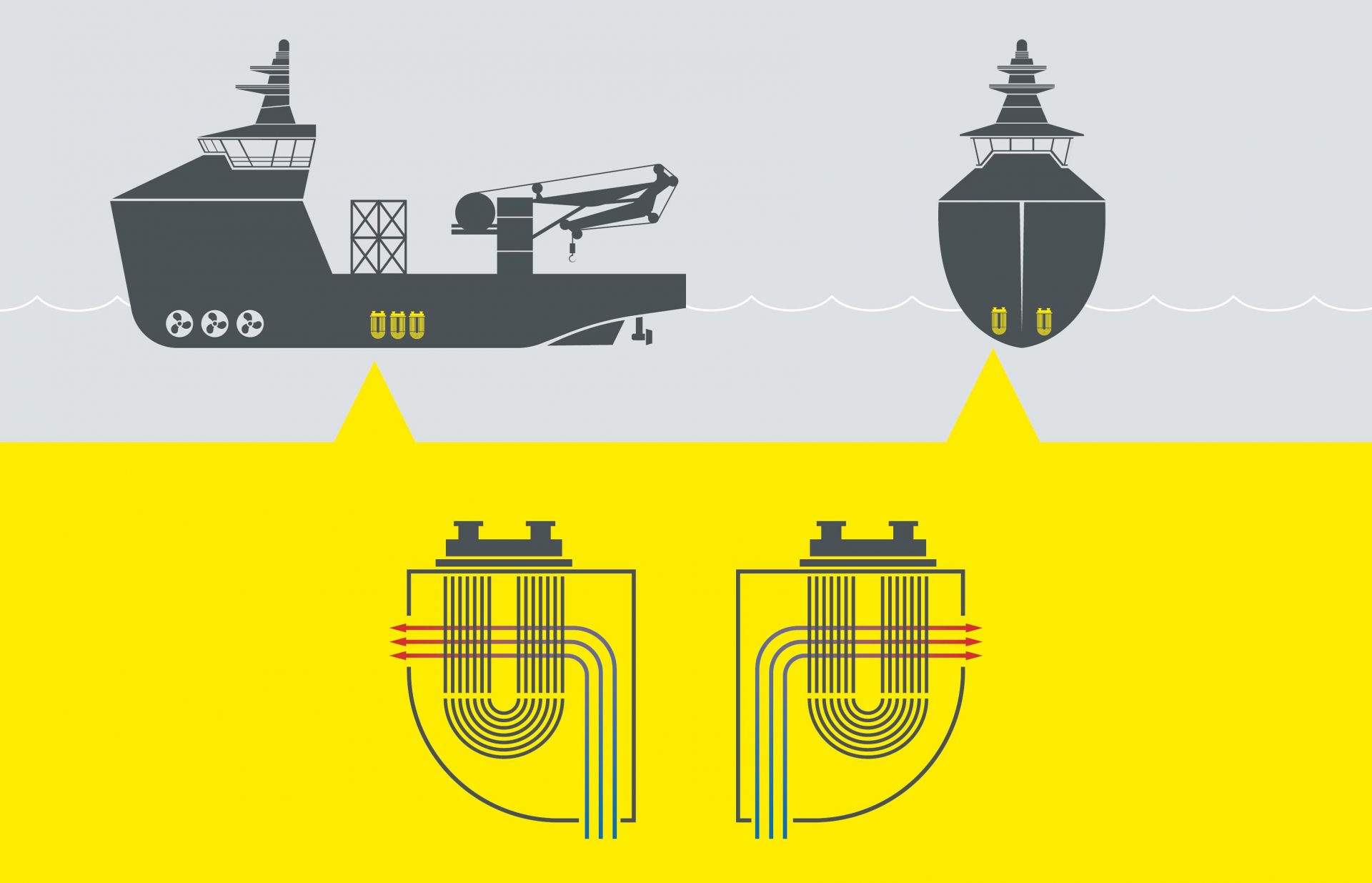

A Box Cooler is a vessel water cooling system. It comprises a U-tube bundle that is fitted in the sea chest on the side of a vessel, saving space in the engine room. The sea chest is equipped with inlet and outlet grids. Cooling sea water enters through the inlet grid and flows along the U-tube bundle to the outlet grid, thus cooling the water inside the tubes. The cooling effect is achieved by the forced circulation of sea water when the vessel is moving or by natural convection when it is stationary.
Versatile technology to suit your needs
The cooling power of the Box Cooler is matched by its versatility. Its simple design can be configured in different versions and shapes to suit the available space and cooling requirements. To cover a wide range of cooling duties and constructive boundary conditions, The Box Coolers are available in many variations in round and rectangular design. The round shape is mainly for purposes with smaller cooling capacities. This type covers cooling surfaces between 2 - 21 m². The maximum possible diameter of the bundles is about 400 mm.
The cooling power of the Box Cooler is matched by its versatility. Its simple design can be configured in different versions and shapes to suit the available space and cooling requirements. To cover a wide range of cooling duties and constructive boundary conditions, The Box Coolers are available in many variations in round and rectangular design. The round shape is mainly for purposes with smaller cooling capacities. This type covers cooling surfaces between 2 - 21 m². The maximum possible diameter of the bundles is about 400 mm.
ADDITIONAL INFO
The rectangular form is used for larger cooling capacities and covers cooling surfaces between 9 to 120 m². The width of the box cooler bundle goes up to about 400 mm, while the maximum length is about 2000 mm. As the space available for the box cooler is often limited in the sea chest, the bundle must follow the contours of the hull as closely as possible to generate the largest possible cooling surface. This is achieved by executing the box cooler with a stepped bundle in several sections, each with a different depth. Independent of the design the Box Coolers are available with bundle depths between 400 and 1800 mm. Even bigger types are available on request.
