LNG Small-Scale & Ship-to-Jetty Transfer System
Each MIB Transfer Solution is a complete, fully integrated and tested system for any Ship-to-Jetty application with the most common sizes being 10'' - 8'' - 6''. Each solution is customized on the specific installation arrangement, delivery vessel sizes as well as any specific operating and site environmental conditions (sea-state up to Hs 3.0 meters). Each component of the Transfer System is designed, tested and certified in accordance with the Project-specific requirements ISO 16904 and EN 1474, as applicable. The whole system can be supplied SIL-2 certified in accordance with IEC 61508 / IEC 61511.

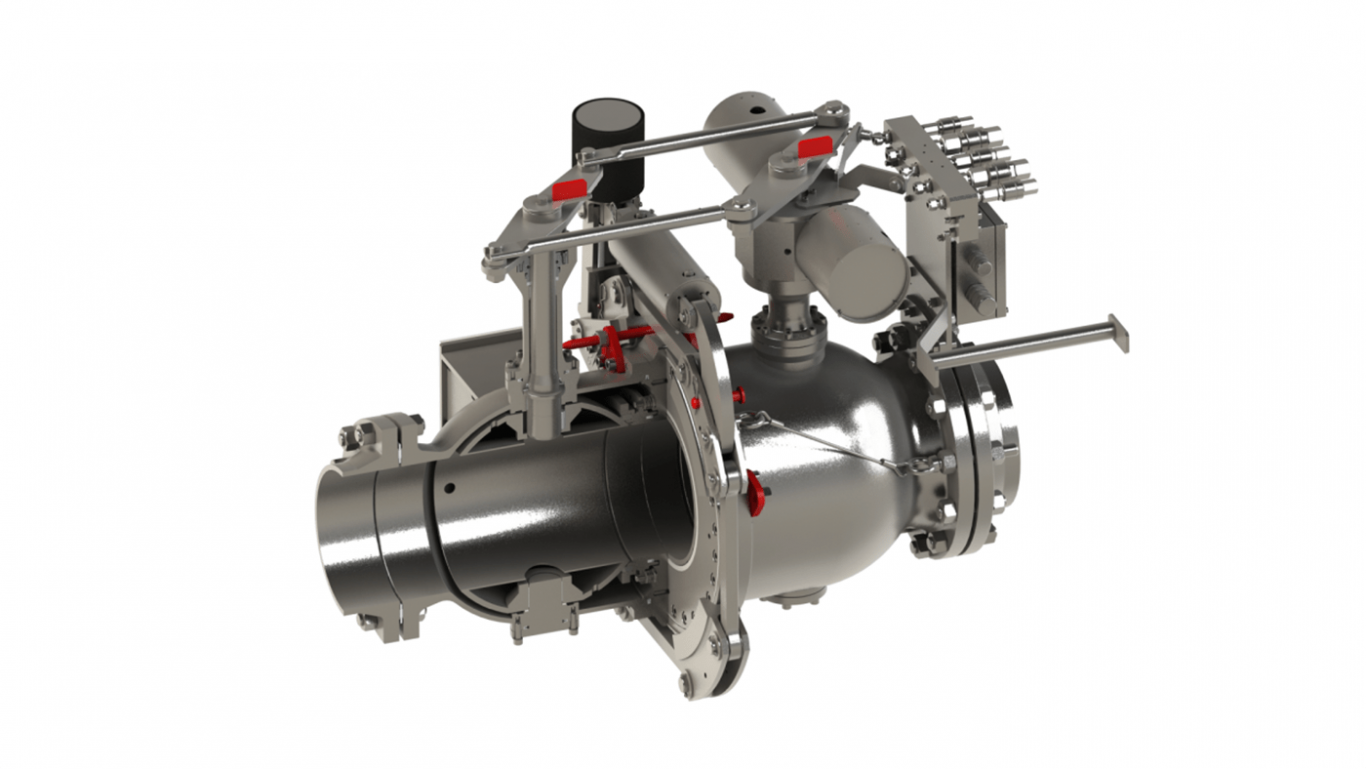

MIB Unique Emergency Release System:
- Light-weight ball valve construction
- Full bore fluid passage allowing highest flowrates with minimal pressure losses - less than 0.02 barg in the worst case scenatio - and no impact on BOG fomration
- Superior performance and unrivalled sealing characteristics both at low or high pressure
- Eliminates the risks of slam-shut valve operation
- Built-in testing facilities to verify its operability over a long service period
- Reassembly tooling for speedy recconnection/start-up
- Excellent cool-down characteristics
- Apporval of the major LNG players
ADDITIONAL INFO
LNG Ship-to-Jetty Package Comprising:
-
Set of Proprietary Emergenccy Release Systems (DBV/ERC equipment) from size 3'' up to 20'' and Design Pressure Rating in accordance with ASME B16.5 class 150 and class 300
-
Common Hydraulic Power Station c/w Local Control Desκ
-
Remote Activation Panel c/w PLC for intergration in the terminal's CCR
-
Set of Guide/Support Saddles with intergrated Braking System for installation on the jetty
-
Set of light-weight and adjustable-height design Support Saddles for visiting vessel
-
Distance sensing system, Y/I-piece reducers & LNG Cargo Hoses
-
Operating parameters analysis and interfaces definition & intergration
