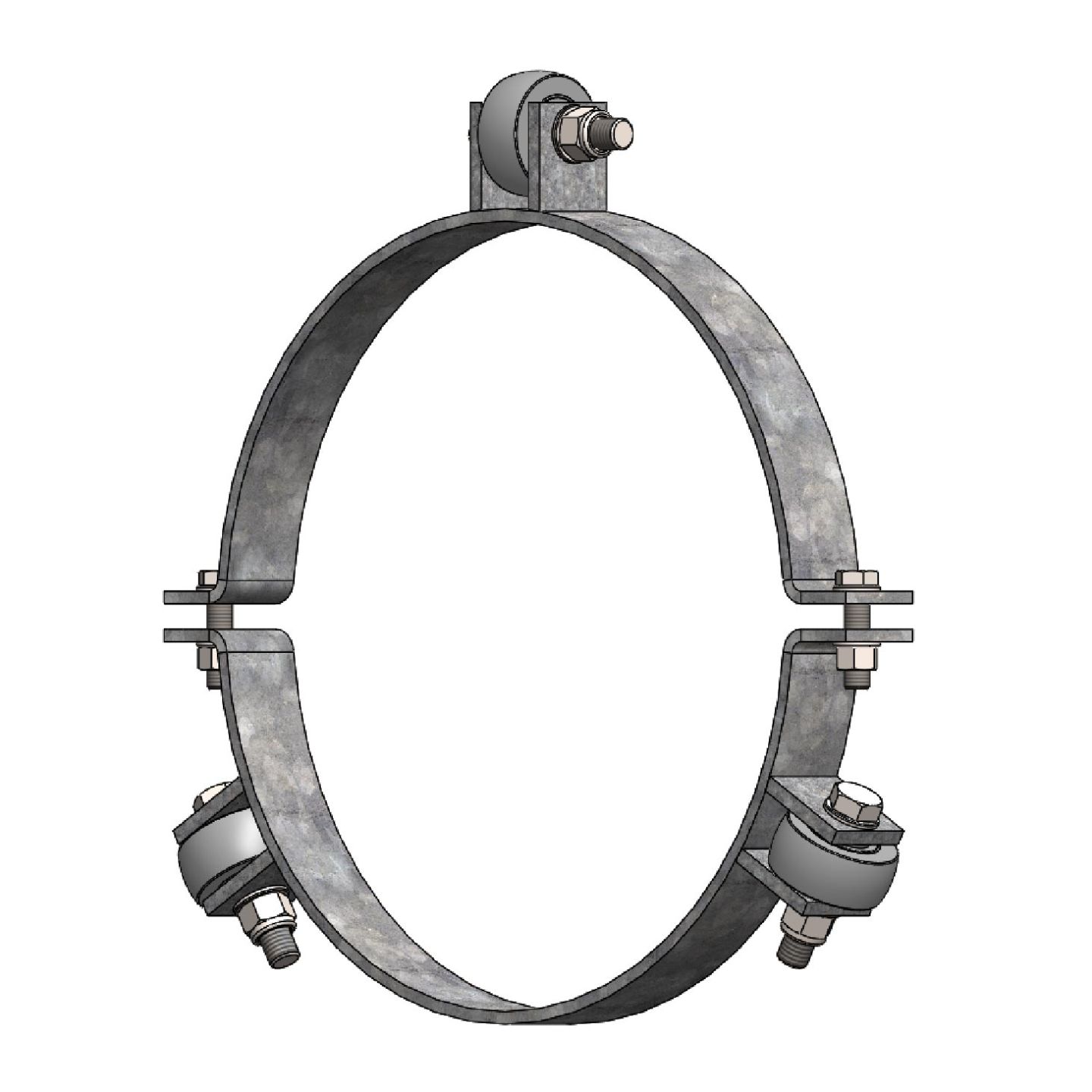

CaseX Steel Roller Ring
Each ring consists of two half-shells, which are clamped together by hexagonal bolts and nuts. The CaseX steel spacers/roller rings are manufactured individually.
Fields of application
For pipe pull-in and pipe positioning where the requirements exceed the possibilities of a DSI® casing spacer.
Material
Half shells and skids are made of steel; surfaces are optionally raw (black) without corrosion protection or bitumen-coated, plastic-coated, galvanized or in stainless steel (V2A/V4A); wheels made of polyamide, steel or stainless steel; screws made of galvanized, high-strength steel or stainless steel
Properties
Individual solution according to customer requirements; high temperature resistance and load capacity, as well as adjustment to large annular spaces; reduced pull-in friction resistance
Sizes
According to customer requirements
For pipe pull-in and pipe positioning where the requirements exceed the possibilities of a DSI® casing spacer.
Material
Half shells and skids are made of steel; surfaces are optionally raw (black) without corrosion protection or bitumen-coated, plastic-coated, galvanized or in stainless steel (V2A/V4A); wheels made of polyamide, steel or stainless steel; screws made of galvanized, high-strength steel or stainless steel
Properties
Individual solution according to customer requirements; high temperature resistance and load capacity, as well as adjustment to large annular spaces; reduced pull-in friction resistance
Sizes
According to customer requirements
ADDITIONAL INFO
Different skid heights for the upper and lower half shells allow any position of the carrier pipe in the outer casing. For longer distances, if necessary with guide rail (anti-twist device).
