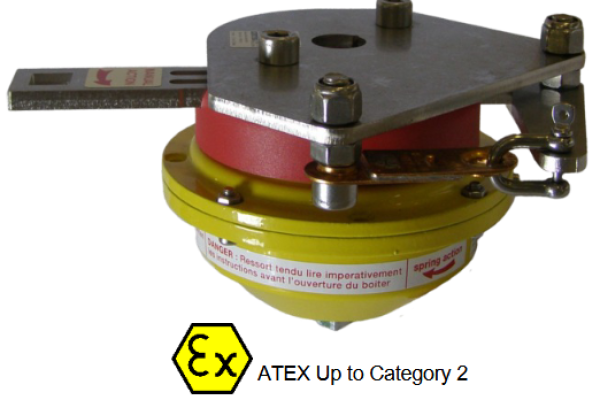

Standard Fire Fail-Safe Spring
In case of a fire, Kinetrol’s fire fail-safe spring unit will reliably open or close your valve or damper unit automatically. Kinetrol’s fire fail-safe spring unit uses a fusible link mechanism designed to yield at a set temperature. Two yield temperature options are available.
To open or close a valve or damper automatically in case of a fire this device allows the valve to operate using a fusible link mechanism designed to yield at a set temperature.
- Reliable torque delivery for valve reseat
- Available for Models 05, 07, 09 and 12
- Two Yield Temperature Options
- Clockwise or counter clockwise 90° spring action
- ISO5211 female drive options available
- Spring housing sealed to IP65 to protect from internal corrosion
- ATEX Category 2 approved options available
ADDITIONAL INFO
Spring Case: 05, 07, 09 & 12 Die cast aluminium alloy, epoxy paint finish
Output Shaft: Stainless steel or carbon steel zinc plated
Clock Type: Spring Stainless spring steel
Lever: Stainless Steel
Output Shaft: Stainless steel or carbon steel zinc plated
Clock Type: Spring Stainless spring steel
Lever: Stainless Steel
