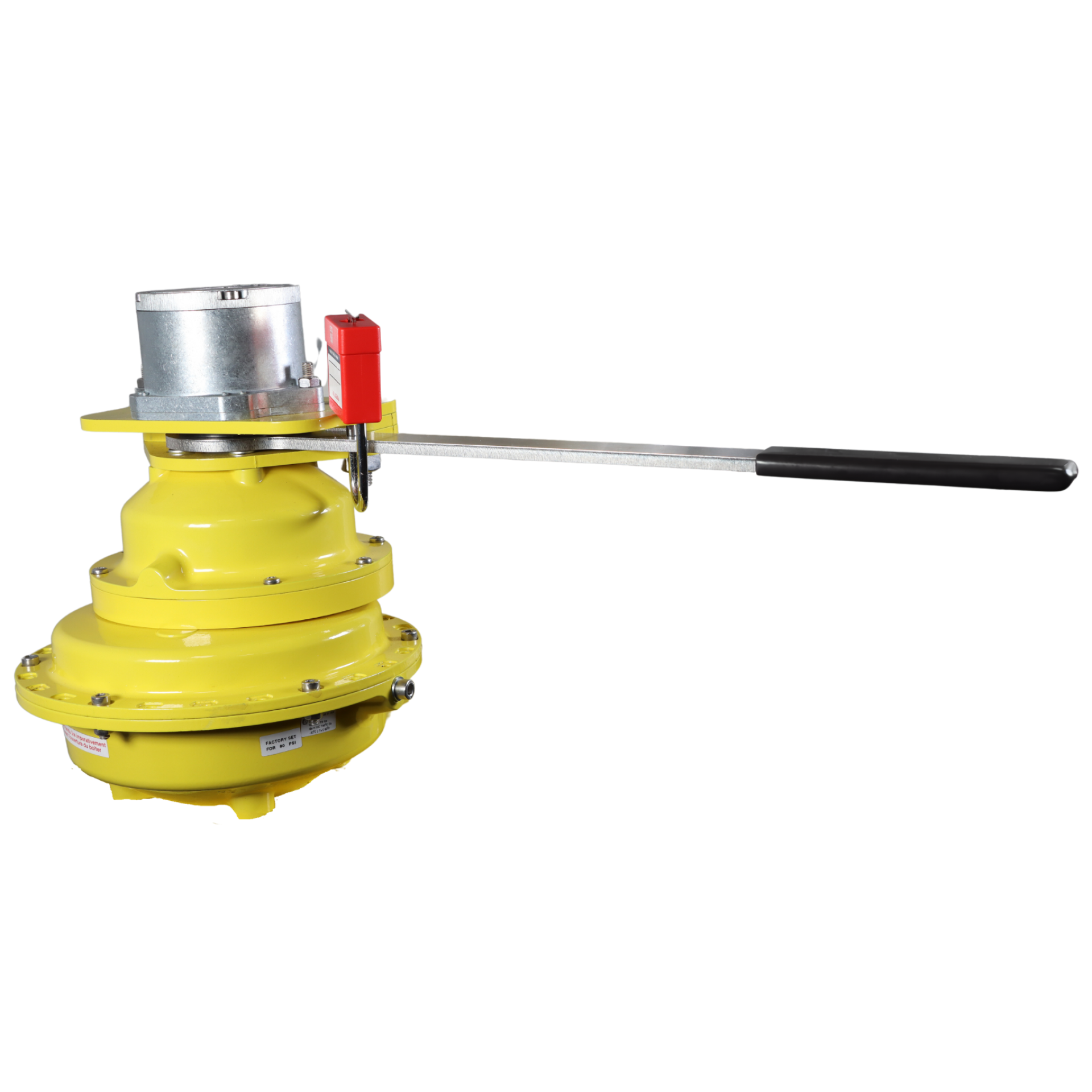

D-Line Damped Manual Fail-Safe
The D-Line damped manual fail-safe uses Kinetrol’s highly reliable, low stress, clock type spring linked to a torque multiplier to allow effortless manual operation of a valve. The integral energy dissipating rotary dashpot damper then ensures the safe, controlled return of the valve to its start position.
The D-Line lever operated damped manual fail-safe range is available from Model 07 up to Model 10 for a maximum allowable valve torque of between 42Nm (375lbf ins) and 143Nm (1270lbf ins).
The D-Line range are specially developed damped manual fail-safe lever-operated units designed to safely operate valves manually whilst ensuring certainty of position when unattended.
Two options are available: our standard range and our torque multiplier range. The standard range is available as Models 07, 08 and 09, with either a 90° input to 90° output or a 180° input to 180° output.
The torque multiplier range adds the Model 10 and comes with a shorter handle length, but is only
available as 180° input to 90° output.
The D-Line range are specially developed damped manual fail-safe lever-operated units designed to safely operate valves manually whilst ensuring certainty of position when unattended.
Two options are available: our standard range and our torque multiplier range. The standard range is available as Models 07, 08 and 09, with either a 90° input to 90° output or a 180° input to 180° output.
The torque multiplier range adds the Model 10 and comes with a shorter handle length, but is only
available as 180° input to 90° output.
ADDITIONAL INFO
Both ranges have the following features:
- Torque Multiplier Unit
- Manual unit, cannot be left in the wrong position
- Reliable torque delivery for valve reseat
- ATEX as standard
- All units sealed to IP65 to protect from internal corrosion
- Safe and easy manual lever operation using Kinetrol’s energy dissipating rotary dashpot damping units
- Designed to meet valve standards: API 6D / S562 (JIP33) / BSEN13942
- Energy limited to 10 joules (adjustable as required)
