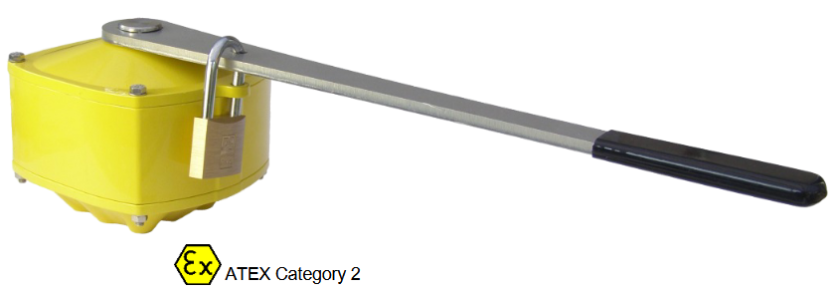

Modular Manual Fail-Safe Spring Handle
The modular spring units' patented design takes the Kinetrol expertise and low stress range clock type spring to a new level.
Maximum Torque
50.8 Nm / 450 lbf.ins
Torque Reduction Through Stroke
5.8 Nm / 51 lbf.ins
Angle of Travel (adjustable)
90° (alternative angles available)
Materials of Construction
Casing: Pressure die cast aluminium alloy
Output Shaft: Stainless steel
Clock Type Spring: Carbon spring steel
Lever: Stainless steel
Finish
Epoxy thermoset powder
Weight
3.8 kg / 8.37 lb (including coupling)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)
50.8 Nm / 450 lbf.ins
Torque Reduction Through Stroke
5.8 Nm / 51 lbf.ins
Angle of Travel (adjustable)
90° (alternative angles available)
Materials of Construction
Casing: Pressure die cast aluminium alloy
Output Shaft: Stainless steel
Clock Type Spring: Carbon spring steel
Lever: Stainless steel
Finish
Epoxy thermoset powder
Weight
3.8 kg / 8.37 lb (including coupling)
Operating Temperature
-40°C to +80°C (-40°F to +176°F)
ADDITIONAL INFO
- Manual unit, cannot be left in the wrong position
- Reliable torque delivery for valve reseat
- Fully reversible direction of spring from clockwise to counter clockwise or counter clockwise to clockwise
- No air or special tools required and direction reverse can be completed in minutes
- Can be converted from male to female drive and vice versa
- Spring housing sealed to IP65 to protect from internal corrosion
- Locking feature as standard (padlock not included)
- Stainless steel shaft and lever as standard
