ContraFlame® / Passive Fire Protection
A lightweight, multifunctional integrated thermal insulation and hydrocarbon fire protection coating ideal for production risers, riser clamps, riser jet fire deflectors, vessels, saddles, process pipework, underdecks, LNG decks, and bulkheads.
Product specifications
ContraFlame® PFP‘s unique syntactic phenolic foam and phenolic glass reinforced laminate construction is a passive solution that does not undergo any chemical or physical change during exposure to heat, fire or cryogenic spill.
- Fully bonded system
- Operational temperature range (-196°C to +185°C)
- Designed for an operational life over 25 years
- Jet fire JF120 and pool fire H240 ratingDNV, Lloyds, BV and ABS approved
- DNV, Lloyds, BV and ABS approved 4.2 bar overpressure blast rated
- 4.2 bar overpressure blast rated
- Closed cell structure.
- The ambient cure means it can be applied anywhere in the world, including offshore facilities.
ADDITIONAL INFO
Low maintenance
ContraFlame® PFP requires zero maintenance during operation.
Pre-formed system

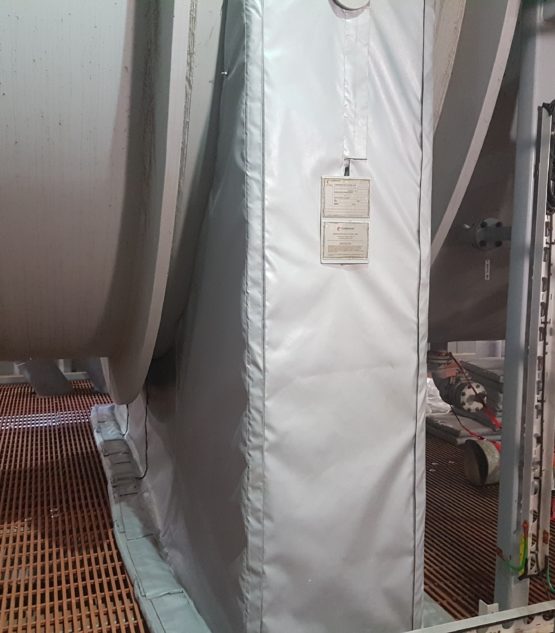

The system can be pre-formed in enclosures and half-shells to protect valves and flanges.
Wet applied system
The system can be hand applied as a fully bonded system to protect risers, vessels and steel structures.
ContraFlame® PFP requires zero maintenance during operation.
Pre-formed system
The system can be pre-formed in enclosures and half-shells to protect valves and flanges.
Wet applied system
The system can be hand applied as a fully bonded system to protect risers, vessels and steel structures.
Typical applications
• Production risers, riser clamps, riser jet fire deflectors
• Vessels, saddles
• Separators, hot slug catchers
• Process pipe work
• Underdecks, LNG decks, bulkheads, spill trays.
• Production risers, riser clamps, riser jet fire deflectors
• Vessels, saddles
• Separators, hot slug catchers
• Process pipe work
• Underdecks, LNG decks, bulkheads, spill trays.
