PN 10 Service Joints

PRODUCTION RANGE
SIZEfrom ½" to 3"

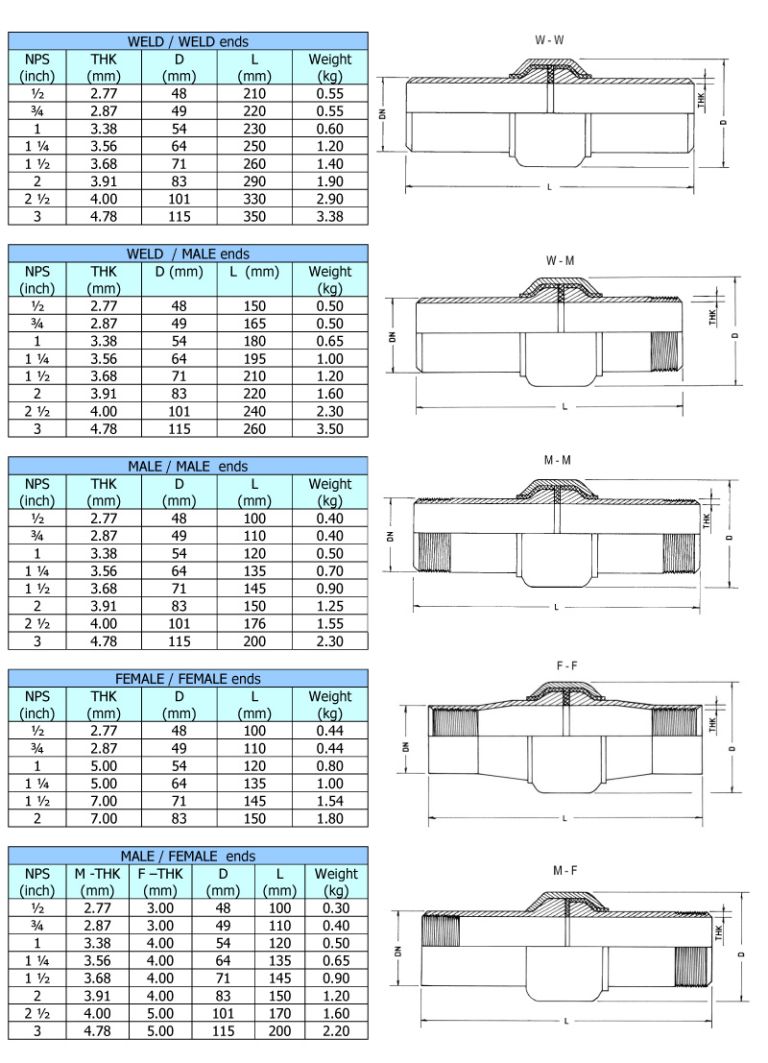

ENDSweld/weld - male/weld - male/male - male/female - female/female
THREADSISO 7 / BSP / NPT on request

TECHNICAL FEATURES
Temperature Range-10°C / 70°C
Design Pressure10 bar
Hydrotest Pressure15 bar
Air Leak Test5 bar for 10 seconds
Dieletric Strenght Test> 3 kV for 1 min. - 50 Hz AC
Electrical Resistance Testin dry conditions > 5 Mhom - 1000 V DC
Coating / Liningepoxy primer / epoxy resin
(Special lining for water on request)

Certification to UNI CIG 10284, D.M. 17/04/2008 & subsequent modifications
