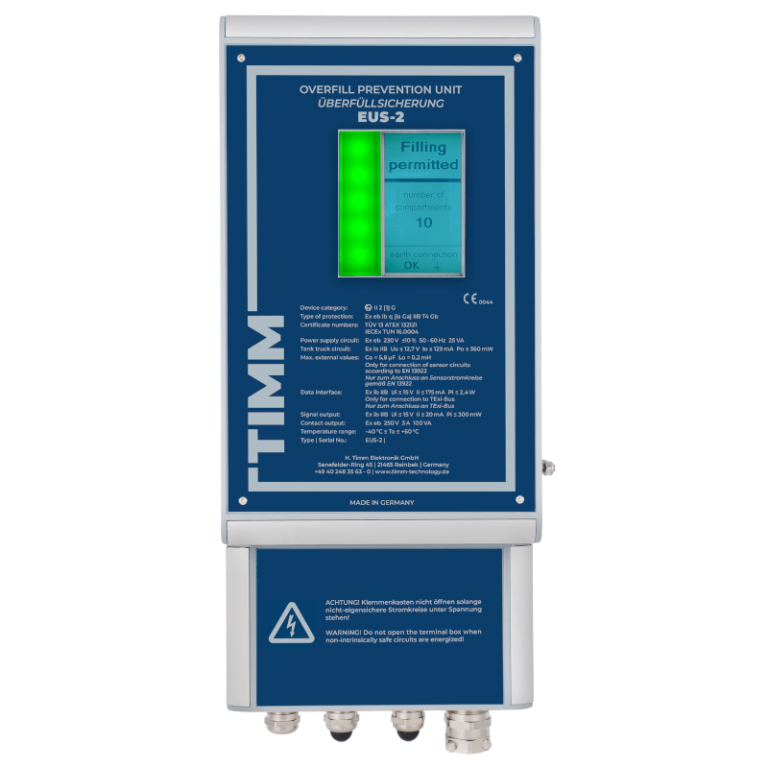

EUS-2 High Safety for Bottom Loading Tank Trucks
For bottom loading of tank trucks according to EN 13922 as well as API RP 1004. Designed in accordance with ATEX, international standard IECEx, Russian TR-CU 012/2011 regulation and Indian CCOE/PESO approval.
Description
- Monitors bottom loading of liquid fuels in the petrochemical industry:
- Overfill prevention
- Grounding control
- Vapour recovery hose
- Immediate interruption of the filling in the case of detecting a factual overfilling of a tank compartment or if a proper electrostatic grounding is not detected
- Automatic recognition of the connected tank truck according to European standard EN 13922 and American standard API RP 1004
- Explosion protection for worldwide use according to IECEx and the European ATEX Directive 2014/34/EU and Indian CCOE/PESO approval
- Tested in accordance with EN 61508:2010 (SIL2 – Safety Integrity Level 2)
- Complete compatibility – independent from the sensor manufacturer – with all 5-wire, 2-wire or other sensors according to EN 13922
ADDITIONAL INFO
Benefits
- Plain text messages display in mother tongue of the operator
- Opening of the housing during operation in hazardous areas is allowed
- Intuitively operation of configuration menu via innovative joystick navigation
- Serial data interface (Ex ib) for connection with the TExi data bus (intrinsically safe data bus by Timm Elektronik)
