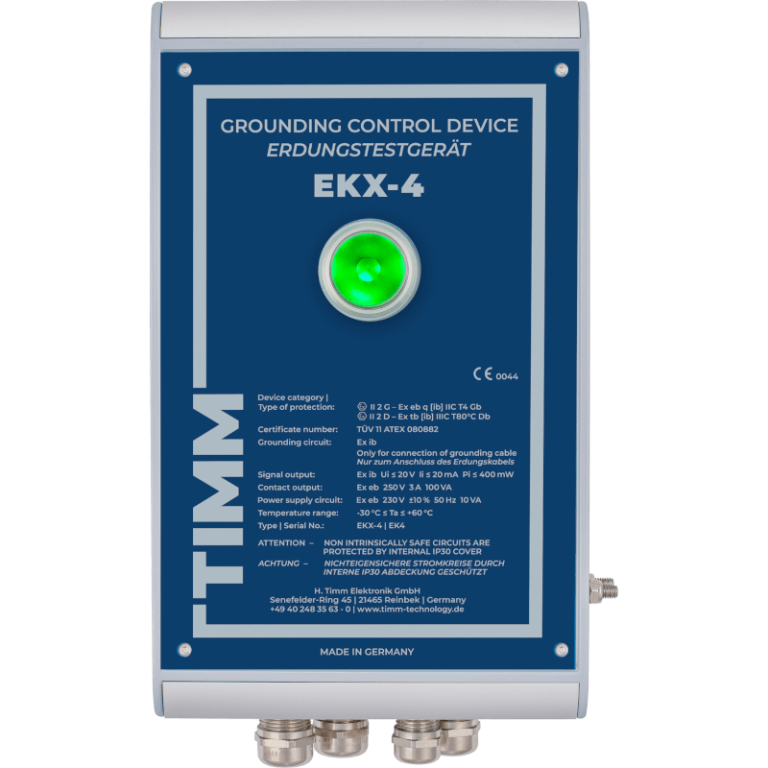

EKX-4 Safe discharge of Electrostatic Charges
During loading and unloading of tank, silo trucks and railway wagons with flammable liquids or bulk solids, an explosive gas and dust atmosphere may arise - a sing spark can be sufficient to initiate an explosion. To prevent this, the occurring electrostatic charges must be discharged safety. TIMM’s Grounding Control Devices ensure static electricity is discharged to the ground by a grounding cable and continuously monitor the grounding quality. If there is an interruption of the grounding connection, the filling process will be interrupted immediately.
Description
- Monitored grounding during loading and unloading inflammable liquids or solids in tank trucks, silo trucks and railway wagons
- For use in gas and dust hazardous areas of zone 1 (equipment category II 2 G) and 21 (II 2 D)
- Prevents manipulation due to object recognition
- Controlled derivation of the static electricity
- Immediate interruption of the loading operation when unsafe grounding connection occurs
- According to all currently relevant EMC and ATEX directives
- High functional safety according to EN 61508 / SIL 2 (Hardware-Assessment)
ADDITIONAL INFO
Benefits
- Prevents manipulation due to object recognition (by measuring the impedance)
- Opening of the housing during operation in gas-hazardous areas is allowed
- Automatic diagnosis system self-monitors all safety-related functions continuously
- Due to the cable compensation, it is also possible to connect cables up to 30 m
- NAMUR-compatible Ex i control output
