- To transfer data between the installed peripheral devices located in the hazardous areas (card readers, input terminals, EUS-2 Overfill Prevention Controller) and the host control system e.g. terminal administration and automatization Software
- To build-up an explosion-proof intrinsically safe data bus and realization of the connected field devices
MARKETS

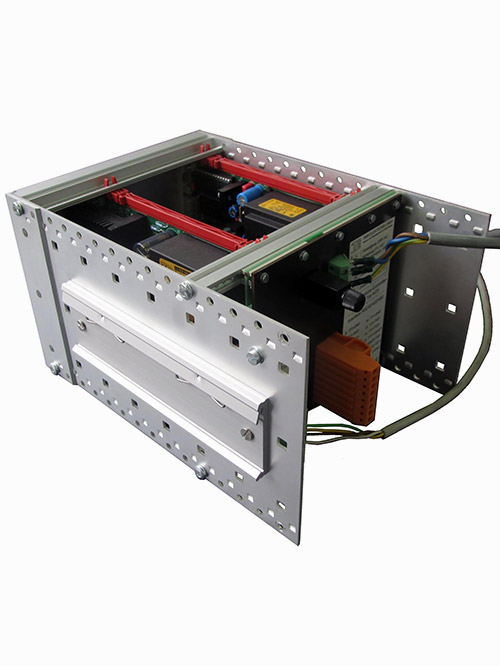

KCS Communication Controller System
To transfer data between the installed peripheral devices located in the hazardous areas and the host control system. Build-up of an explosion-proof intrinsically safe data bus. Provides an universal interface to the host computer.
APPLICATIONS
FUNCTIONS
FUNCTIONS
- Field devices act in concert at one interface module – no star-shaped cable lay
- The KCS realizes data traffic between the connected field devices and the superordinate computer system in such a way that the field devices can be addressed directly from the computer system (slave addressing)
- Interface to the superordinate computer can be configured as RS422, RS232 or TTY
- The universal Siemens SP3964R is used as protocol
- The interface cards are approved for gas group IIB and IIC
ADDITIONAL INFO
Benefits
- Project specific configuration possible by modular design in the subrack
- The KCP Processor Module incl. the interface to the host system and the KCI Interface Module for connection of field devices can be linked to another
- A processor group with several interface boards can be operated up to 32 slaves
- The interface module enables a safe electrical isolation between the bus circuits and the processor module
