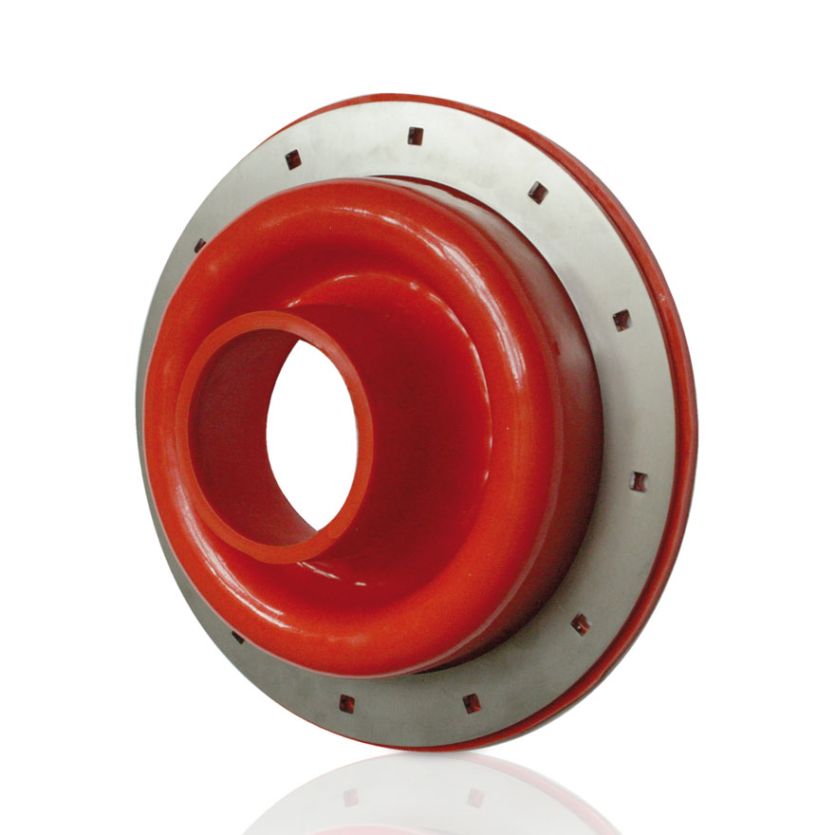

RottoX VDW® - radial/axial movement
Due to the unique manufacturing process, the seamless production is possible for nearly all pipe combinations and sizes. Installation is very easy due to the pre-formed sleeves. As a result of seamless production, without punched openings, subsequent tensions will not cause cracks.
Even the weld seam of the split version has the same properties in the base material, it is hot-plate-welded without any additional materials. This could be carried out on site by our partner.
The material Rottolin is also characterized by high durability and flexibility. This is particularly important, for example, when used in acidic soils. Of course, this also applies to the standard STM sleeve for installation on a carrier pipe / casing pipe combination.
Fields of application
The flexible sleeve made of high quality Rottolin can compensate pipe bendings, and is suitable for non-moving pipes penetrating buildings without sealing sheet
Material
High-quality Rottolin; seamlessly manufactured; permanently elastic sealing compound; anchor dowel; pressure plate V2A
Properties
Material thickness approx. 6-8 mm; color red; Shore A 50° ±5; tensile strength 11 N/mm2; elongation at break 400%; tear strength; 27 N/mm2; max. continuous operating temperature 55 °C; pipe bending up to 20 °C; tight against pressing water up to 1.0 bar; weldable (only split version)
Sizes
Core drillings from 150 to 900 mm
The flexible sleeve made of high quality Rottolin can compensate pipe bendings, and is suitable for non-moving pipes penetrating buildings without sealing sheet
Material
High-quality Rottolin; seamlessly manufactured; permanently elastic sealing compound; anchor dowel; pressure plate V2A
Properties
Material thickness approx. 6-8 mm; color red; Shore A 50° ±5; tensile strength 11 N/mm2; elongation at break 400%; tear strength; 27 N/mm2; max. continuous operating temperature 55 °C; pipe bending up to 20 °C; tight against pressing water up to 1.0 bar; weldable (only split version)
Sizes
Core drillings from 150 to 900 mm
ADDITIONAL INFO
For installation in the ground, the sleeve must be covered with an expansion pad, to reduce the pressure of the soil on the sleeve, so that a moving during the backfilling process is still possible.
To ensure tightness of RottoX Temp, the annular space should not be larger than 70 mm
To ensure tightness of RottoX Temp, the annular space should not be larger than 70 mm
