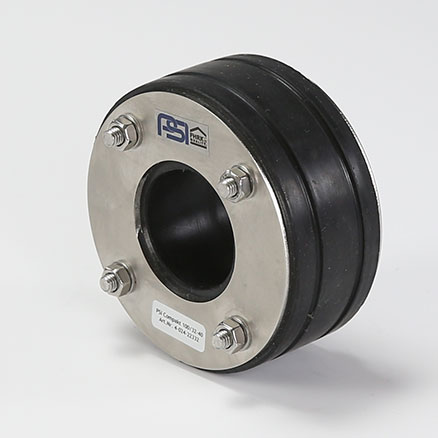

Compakt Solo closed / split
The 40 mm wide rubber element is compressed by means of two metal discs. The Compakt seals the annular space between carrier pipe and casing pipe/core hole against water and gas.
Fields of application
Ideal sealing of wall penetrations for gas, water, sewage pipes, and cables.
Material
EPDM-Rubber; Shore A 43° ±5; NBR-Rubber; Shore A 40° ±5;
pressure plates V2A; rubber thickness 40 mm;
Properties
Temperature range EPDM -30 °C to 120 °C; UV-resistant;
temperature range NBR -30 °C to 70 °C; not UV-resistant;
pressure-tight up to 3.0 bar, with an ejection safety device up to 5.0 bar;
Sizes
Core drillings 50 to 400 mm
ADDITIONAL INFO
Properties General
- Special applications for different pipe systems
- Consist of stainless steel pressure plate
- All Compakt Solo split versions are foldable
Properties Compakt Super Soft
- Double rubber sealing rings made of extra soft EPDM
- Reliable sealing even for thin-walled pipe types
- Specially developed for wall penetrations of flexible, corrugated pipes, and cables
