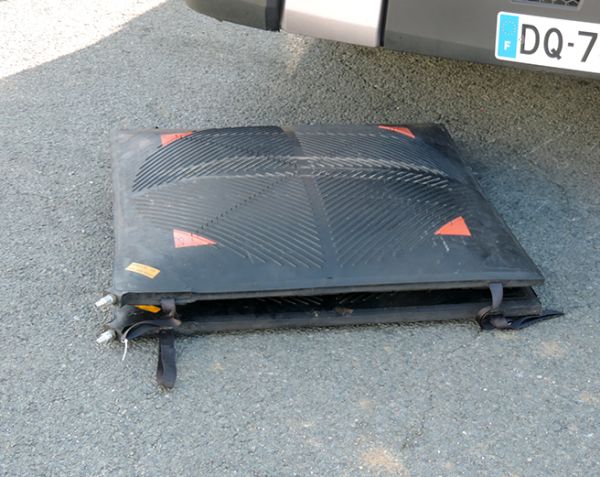

High-Pressure Air Lifting Bag - CLT
The high-pressure air lifting bag, lifts, wedges and pushes heavy loads mainly horizontally. However, its actions can also be performed vertically, for example for pipe wedging. Depending on the model, the lifting capacity of this pneumatic cushion ranges from 1 to 65 tons. The lifting stroke can be up to 500 mm high.
The air lifting bag fits easily into small spaces, thanks to its empty thickness of only 25 mm. Also, its remote control avoids the operator to be too close to the lifting area. This inflation system makes the CLT high-pressure air lifting bag an essential tool for safe working.
Manufactured from aramid nappage coated with elastomer and assembled by vulcanization, the range of lifting bags is used in addition to or in replacement of the traditional means of lifting.
Manufactured from aramid nappage coated with elastomer and assembled by vulcanization, the range of lifting bags is used in addition to or in replacement of the traditional means of lifting.
ADDITIONAL INFO
Unlike the hydraulic jack, the pneumatic lifting bag has a larger contact surface with the load to be lifted. Thus, the stability is perfect and the thrust is uniformly distributed.Thanks to its low weight and thickness, we can find them in many sectors of activity such as vehicle recovery, handling, quarries or emergency services. Among this range, there are also low pressure air lifting bags and stack bags.
