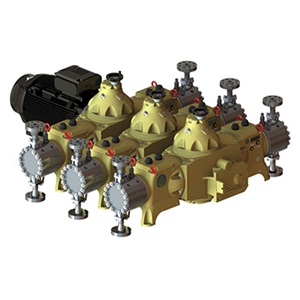

Engineered for process-critical applications, the PRIMEROYAL® Flat Twin (PX FT) metering pump is Milton Roy’s most powerful pump explicitly designed for high performance industries and applications. The modular design is smaller and lighter than comparable Primeroyal models while maintaining a respectable performance with flows reaching up to 32,295 l/h (8,351 gph) and pressures up to 1,029 bar (15,000 psi).

Technical Features:

Packed plunger, PTFE or metallic diaphragm liquid ends available
Liquid end body in 316L S.S., 17-4 PH Other materials like Alloy 20, Hastelloy, super Duplex available upon request
Steady-state accuracy – ± 1% of full capacity over the standard 10:1 turndown ratio
Diaphragms in PTFE or SS 301 stainless steel; plunger in ceramic Maximum allowable suction pressure performances (up to 407 bar / 5908 psi)
5 stroke speeds/gear ratios available with 50 Hz motor: 73,93,117,146 and 175 spm. 4 stroke speeds/gear ratios available with 60 Hz motor: 88,112,140 and 175 spm.
Manual or electrical stroke length adjustment
IEC or NEMA mounting, motor for frequency variation
Electric equipment for non-hazardous or hazardous area,large variety of protections and insulations
Conforms to ATEX II 2 G Ex h IIC T3 Gb X with Atex motor
Optimum protection for critical processes or pumped fluids: double diaphragm, diaphragm failure detection, temperature probes and cooling system.
Special check valves for any type of fluid (including concentrated sulfuric acid and slurries)
Remote head, Cooling/heating jacket for handle processing requiring low/extreme fluid temperatures
Full set of connections: screwed or flanged connectors (ANSI, DIN or ISO)
Wide range of accessories available to complete your dosing installation

Benefits

Utmost performances: High flow rates (up to 32,295 L/h - 8,531 GPH) and High discharge pressure (up to 1,029 bar / 15,000 psi)
Compliant with API675 standards
Adaptability and accuracy: capacity adjustable while running or stopped (stroke micrometric adjustment, from 0 to 100%)
Space constraints: Available in vertical or horizontal motor configurations
Suitable for the majority of fluids and a large number of industrial processes: several stroke speeds for accurate dosing
Modular design to precisely fit your needs: three designs of liquid ends, specific check valves, adaptable connection types, rupture detection systems…
Multiplexing capability: to reduce pulsations, meet a specific flow rate by reducing the number of parts, the power consumption and the footprint or to inject several products
Long life: ensured by a robust and proven construction, oil bath lubrication to ensure reliability during continuous operation, using the best material
Safety: double diaphragm liquid ends guaranteed leak-proof with service life in excess of 20,000 hours
Operations even in the most extreme conditions: specific configurations to operate in saline/offshore conditions, desert, low temperature environment
Global design: can comply with the main worldwide certifications and systems: ATEX, NACE, PED, SASO, Customs Union, etc.
Over-pressure protection: integrated safety valve to protect the pump on diaphragm liquid ends

ADDITIONAL INFO

Oil and Gas Chemical Injection:
- Upstream: injection of methanol, CO2, monoethylene glycol, corrosion inhibitors and many more to prevent hydrate formation, wax and scale deposits and corrosion in deep-water wells
- Midstream: Injection of corrosion inhibitors for produced oil and gas integrity during transportation
- Downstream: Injection of chemicals for separation and treatment of refined products
Chemical and Petrochemical Processing: Dosing catalysts for polymerization of polyethylene
Power Generation: High-pressure boiler feed water treatment
Refinery: Pumping of hydrocarbons/condensate
Water treatment in Oil & Gas: Deep water disposal, hydrocarbon condensate transfer
