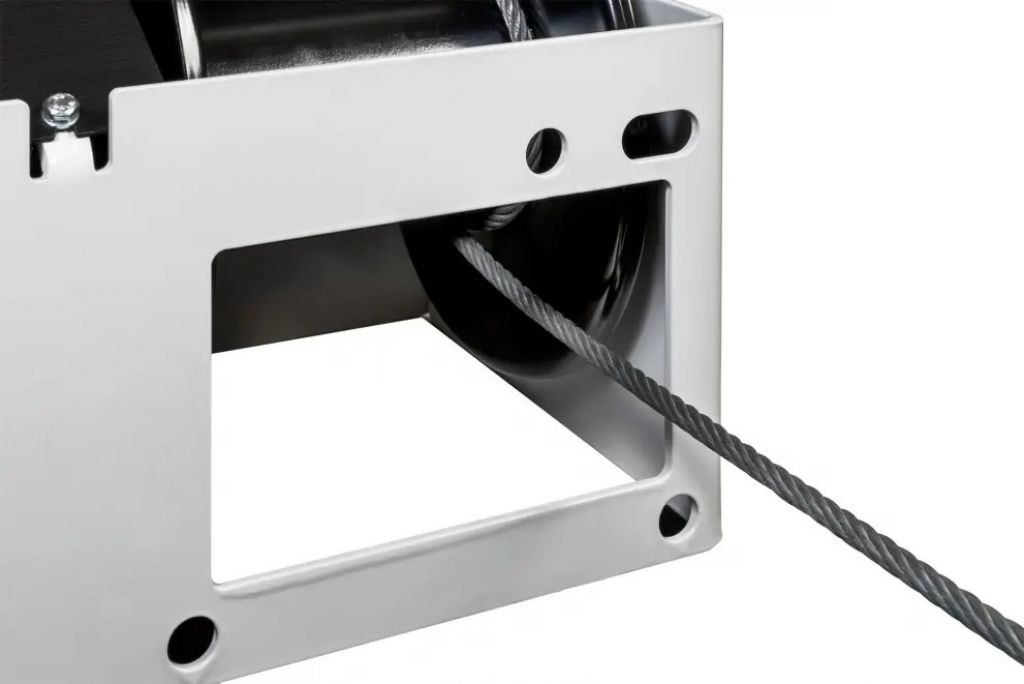

Worm gear hand winch 2000 kg
This large worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the large worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters.
In short, a very safe and reliable winch that is easy to use.
Specifications
- winch suitable for lifting and pulling in compliance with EN13157
- static safety factor 4
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- cable outlet upwards, downwards or at rear
- adjustable crank
- suitable for wall and (optional) floor mounting
- 1 layer of paint
ADDITIONAL INFO
| Capacity 1st layer | 2000 kg |
| Capacity 4th layer | 1399 kg |
| Capacity top layer | 1075 kg |
| Lifting speed | 0,3 m/min |
| Rope diameter-Ø | 12 mm |
| MBL of cable | 60 kN |
| Rope storage 1st layer | 5 meter |
| Rope storage 4th layer | 28,4 meter |
| Rope storage top layer | 60,5 meter |
| Crank effort at full load | 15 kg |
| Weight (without rope) | 60 kg |
| Article number | 77276000 |
| Type name | WW2000 |
