High Pressure Stoppers - OHP/OPV

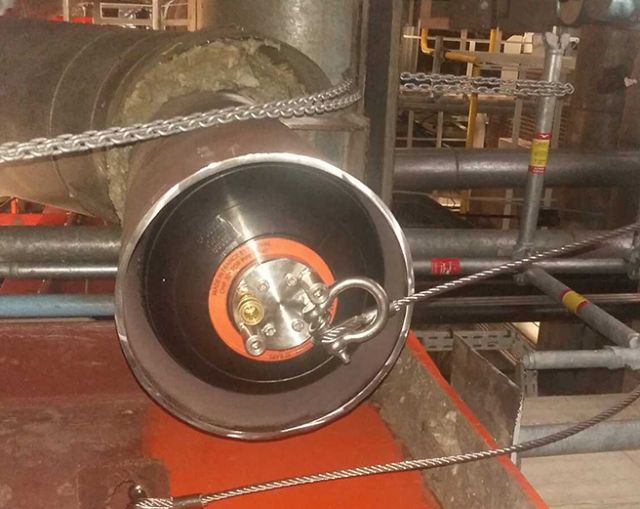

“OHP & OPV” stoppers are capable of plugging all types of pipeline (Concrete, steel, HDPE, stainless steel…). They have been designed to withstand strong back pressures of up to 35 bars and even more on request. This is why they can be trusted to plug highly pressurized Nuclear, Onshore, Offshore & Gas pipelines for inspection, test, or maintenance operations. These pipe plugs systems also ensure the buoyancy of jackets or pipes.
Detailed information
- Material: SBR / NPVC / EPDM depending on use
- Technique: hot vulcanization in a vacuum autoclave
- Range:
- OPV with 3 bar back-pressure resistance
- OHP 1 with 8 bar back-pressure resistance
- OHP 2 with 15 bar back-pressure resistance and even more upon request
- Dimensions: standard and tailor-made
- Inflation: by air
- Temperature resistance: -25°C/+100°C
- Accessories:
- By-pass
- Castor system
- Autonomous inflation system
ADDITIONAL INFO
Other uses for our high-pressure stoppers include welding tests, valve repairs or replacements. We can propose the production of specific stoppers that include:
• integrated flanges,
• bypass,
• specific coatings providing resistance against chemical, oil, or hydrocarbon contact,
• an automatic inflation/deflation system, …
