Plinth Termination with 50 mm High Base Profile
The plinth termination of cabinets using a base profile serves not only an aesthetic function, completing the design of the entire space, but primarily a practical one, by enclosing an otherwise difficult-to-clean space.
Terminating cabinets to the floor using a base profile is a suitable solution for personnel and material transfer hatches for base, medium, and tall cabinets.
Parameters:
Maximum width of cabinet assembly: 4000 mm.
Plinth height: 50 mm.
Plinth Termination Types:
B000P - cabinet mounted on a base profile that is covered with flooring. Recommended for cabinets with material finishes STANDARD, STANDARD PLUS, PREMIUM, and PREMIUM 304.
B7035 - cabinet mounted on a base profile with a gray RAL 7035 surface finish. Recommended for cabinets with material finishes STANDARD and STANDARD PLUS.
B9016 - cabinet mounted on a base profile with a white RAL 9016 surface finish. Recommended for cabinets with material finishes STANDARD and STANDARD PLUS.
Other Plinth Termination Options:
On a 100 mm high base profile. Chapter 204.04B. Primarily for cabinets with material finishes STANDARD and STANDARD PLUS.
Specially developed plinth termination for cabinets with PREMIUM and PREMIUM 304 material finishes. Chapter 214.40A. The termination has a visible height of 50 mm with rectification capability. Available in AISI304 stainless steel, SB surface finish, or a metal plinth with RAL7035/RAL9016 surface finish.
Maximum width of cabinet assembly: 4000 mm.
Plinth height: 50 mm.
Plinth Termination Types:
B000P - cabinet mounted on a base profile that is covered with flooring. Recommended for cabinets with material finishes STANDARD, STANDARD PLUS, PREMIUM, and PREMIUM 304.
B7035 - cabinet mounted on a base profile with a gray RAL 7035 surface finish. Recommended for cabinets with material finishes STANDARD and STANDARD PLUS.
B9016 - cabinet mounted on a base profile with a white RAL 9016 surface finish. Recommended for cabinets with material finishes STANDARD and STANDARD PLUS.
Other Plinth Termination Options:
On a 100 mm high base profile. Chapter 204.04B. Primarily for cabinets with material finishes STANDARD and STANDARD PLUS.
Specially developed plinth termination for cabinets with PREMIUM and PREMIUM 304 material finishes. Chapter 214.40A. The termination has a visible height of 50 mm with rectification capability. Available in AISI304 stainless steel, SB surface finish, or a metal plinth with RAL7035/RAL9016 surface finish.
ADDITIONAL INFO

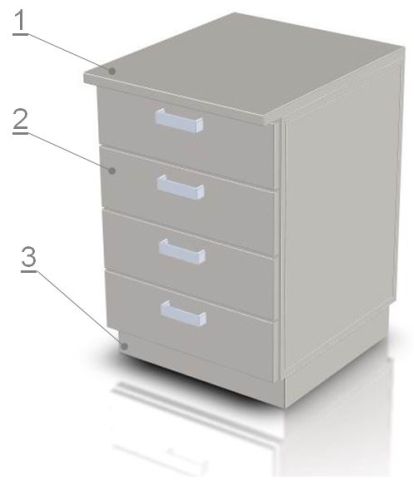

LEGEND:
1 - Worktop 205.01
2 - Cabinet 204.01, 204.02, 204.03, 210.01
3 - Plinth termination (100 mm height - 204.04, 50 mm height - base profile - 216.40A, 50 mm height with rectification - 214.40A)
1 - Worktop 205.01
2 - Cabinet 204.01, 204.02, 204.03, 210.01
3 - Plinth termination (100 mm height - 204.04, 50 mm height - base profile - 216.40A, 50 mm height with rectification - 214.40A)
